High-reach boom lift

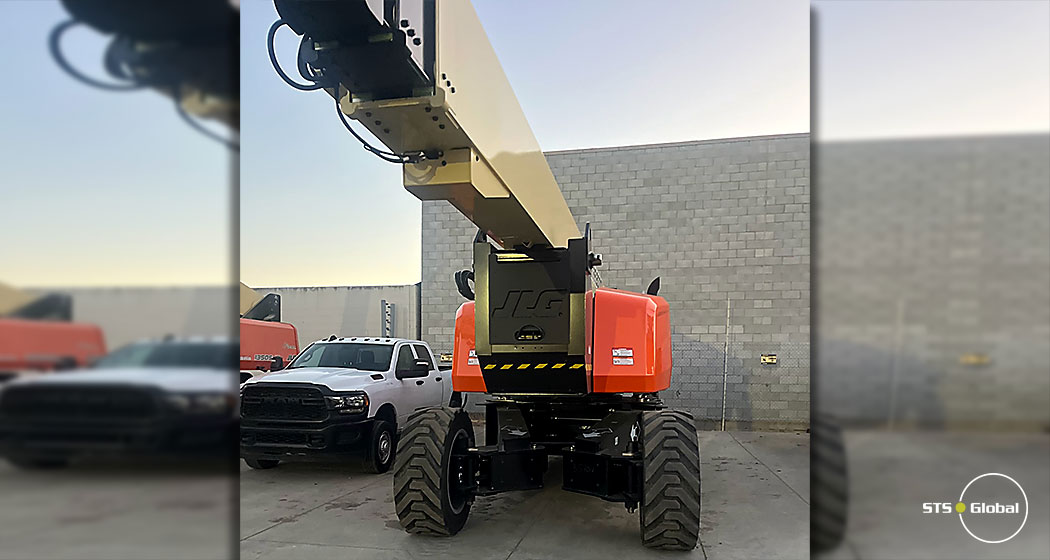

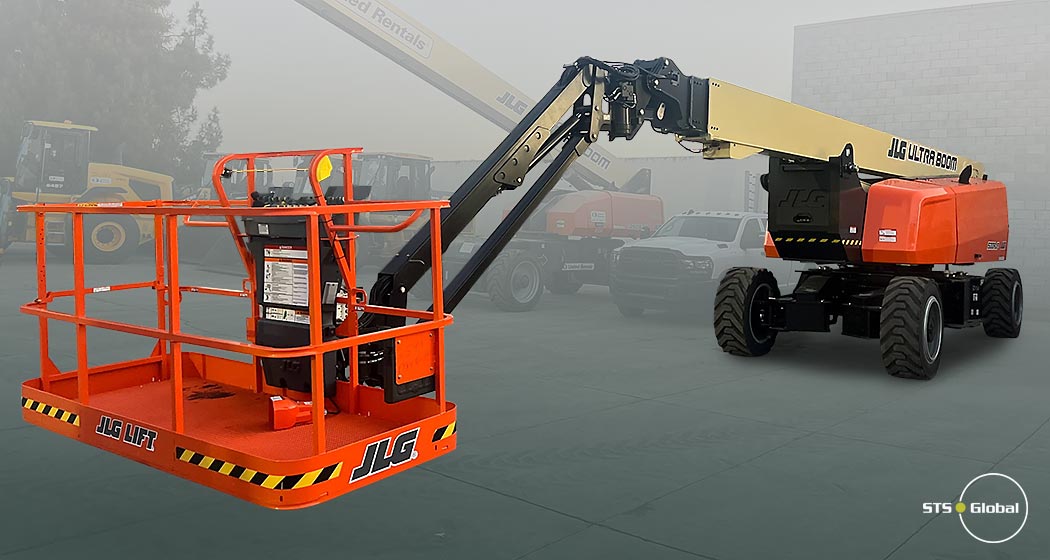

JLG 1500AJP is a heavy-duty articulating boom lift which combines reach, payload and efficiency in one vehicle.

This high-reach boom lift offers a reliable solution for large-scale construction, maintenance and industrial applications.

Reach and access capabilities

The JLG 1500AJP is designed for projects where exceptional height and flexibility in movement are required at the same time.

The lift provides one of the industry’s most impressive working characteristics in its class:

Maximum platform height: 150 ft / 45.7 m
Horizontal outreach: 75 ft / 22.9 m
Up-and-over clearance: 60 ft / 18.4 m
Platform rotation: 180°
Continuous swing: 360° for unrestricted positioning

The above specifications allow operators to access areas that are difficult to reach with straight boom lifts.

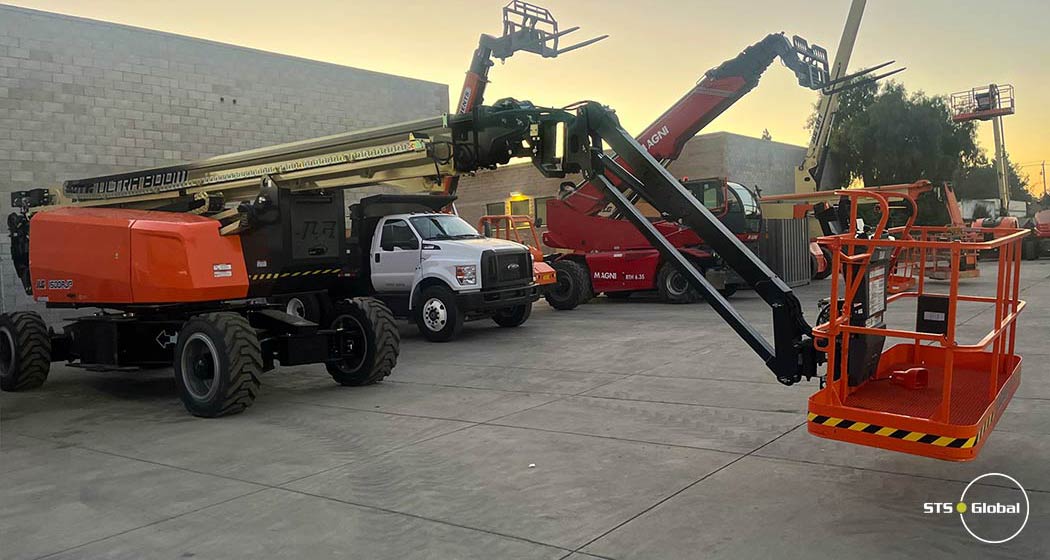

The machine’s articulating jib makes it easy to maneuver around obstacles, which makes it suitable for work on building façades, complex structures or narrow urban sites.

Working capacity and efficiency

Designed for productivity, the 1500AJP allows operators to lift more tools and personnel in fewer cycles.

The vehicle’s robust lifting capacity ensures stability and performance at significant heights:

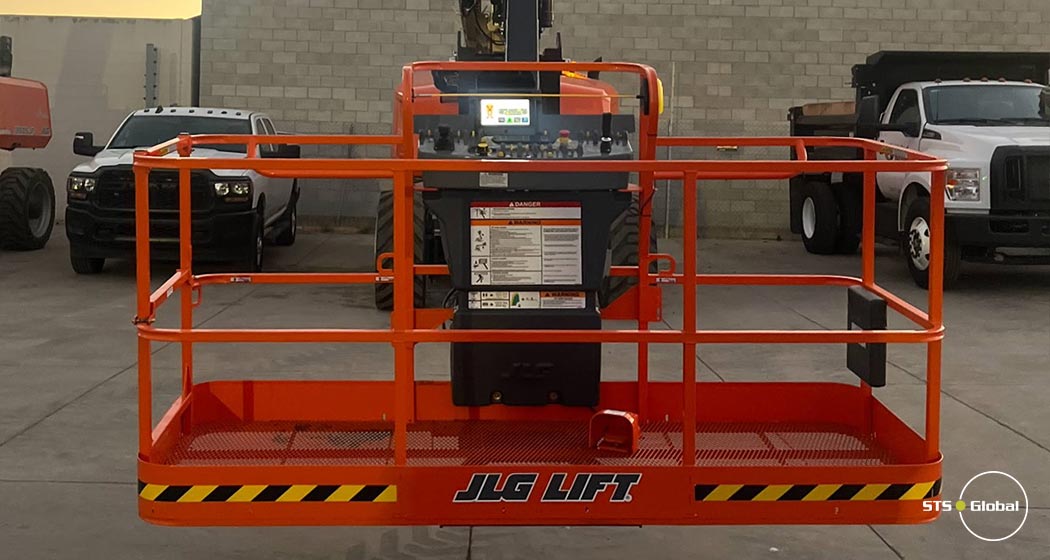

Platform capacity:
- 600 lb / 272 kg (unrestricted)
- 1,000 lb / 454 kg (restricted mode)
Boom design: QuikStik® system for faster movement from ground to full height
Cycle time: Reaches full elevation in approximately four minutes
Control system: Proportional controls for smooth operation

The result is reduced downtime between tasks and improved workflow efficiency — a key advantage on busy job sites.

Transportability and setup

Despite its impressive scale, the 1500AJP is designed with transport convenience and quick setup in mind:

Transport width: Adjustable via extendable axles
Drive-out axles: Expand for stability during operation, retract for transport
Transport height: Allows standard trailer movement with minimal disassembly
Road transport: No oversized-load permit required (overweight permit may apply)

This makes the lift a practical option for contractors managing multiple job sites and for rental fleets needing frequent relocation.

Power, durability and control

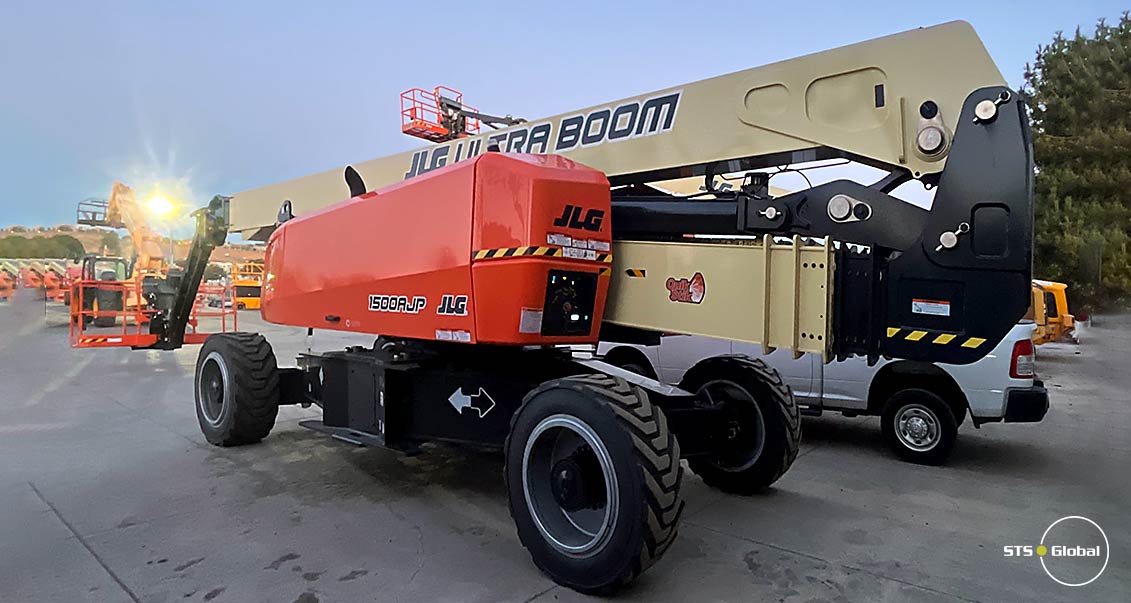

The JLG 1500AJP is powered by a durable, high-performance diesel engine that supports demanding outdoor conditions:

Engine type: Deutz TCD 3.6 L Tier IV Final
Engine power: 99.8 hp / 74.4 kW
Gradeability: 40 % — ideal for sloped or uneven terrain
Chassis design: Heavy-duty with swing-out engine tray for easy maintenance
Steering: Four-wheel drive for reliable traction and maneuverability

Operators get benefits from advanced onboard monitoring through an LCD display that provides key performance data and fault codes in real time.

Smart connectivity and maintenance

The 1500AJP integrates seamlessly with JLG’s ClearSky Smart Fleet system, offering advanced telematics and remote management features:

Machine diagnostics and fault alerts via cloud connection
Usage tracking for maintenance scheduling and fleet optimization
Location data for asset management and security

These smart capabilities help reduce downtime, streamline servicing and support predictive maintenance across multiple machines.

Applications and advantages

The JLG 1500AJP’s unique combination of vertical and horizontal reach, load capacity and intelligent design makes it the perfect solution for:

Building façade installation and maintenance
Industrial plant work and inspections
Stadium and lighting infrastructure
Bridge and structural repairs
Large-scale construction projects

Its ability to carry heavy loads at height, move efficiently around structures, and transition quickly between job sites makes it one of the most versatile choices for professional operators.
